Aluminum Channel Letter Bending Machine
1.The cutting adopts DC motor, which is better suitable for all kinds of aluminum.

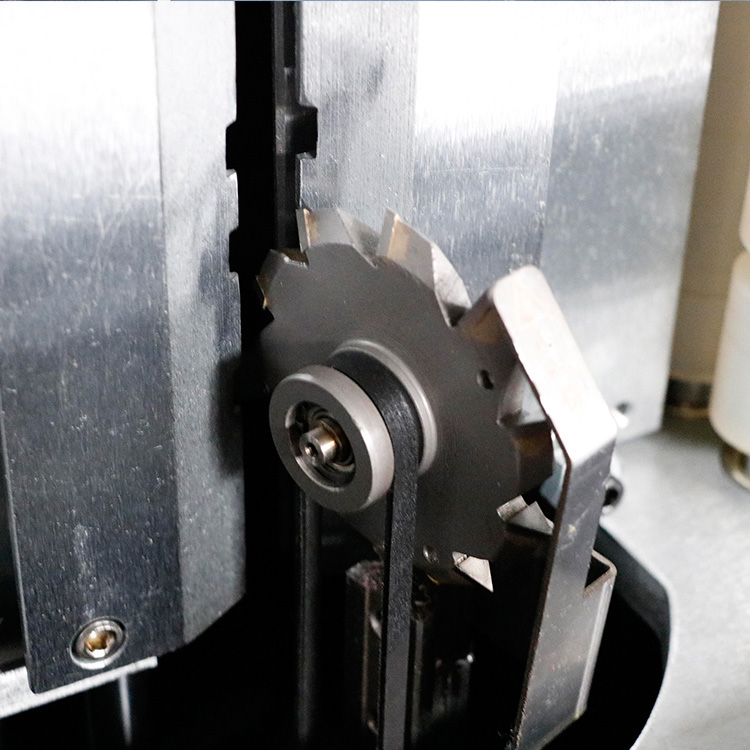

2. Curved arc cutting stability five-axis linkage mechanical structure -- feeding, lifting, cutting, swinging knife, curved arc, one molding, to ensure the equipment cutting and arc bending precision and stability.
3.Closed-loop detection system ensures accurate feeding length to ensure the error between processed finished products and source files < 0.1mm.
Suitable for Flat aluminum strip and aluminum profile . Professional for quality aluminum edge channel letter, boundless channel letter, resin luminous channel letter, super channel letter.
|
Technical Parameters |
|
|
Control System |
4 Axis control system |
|
Processing Material |
flat aluminum strip，aluminum profile |
|
Slot Degree |
45-135° |
|
Min Bending Diameter |
3.5mm |
|
Material Height |
≤130mm |
|
Material Thickness |
0.3-1.2mm aluminum strip≤1.2mm |
|
Power |
1000W |
|
File Format |
dxf, plt |
|
Machine Size |
2440*840*1420mm |
|
Machine Weight |
250KG |
|
Voltage |
220V |
